Type of Pumps | Dual Flow Piston Pumps |
Flange and Mounting | DIN Mounting Flange, 8x32x36 Shaft Type |
Inlet and Outlet Type | One Inlet and Two Outlet, Rear Cover |

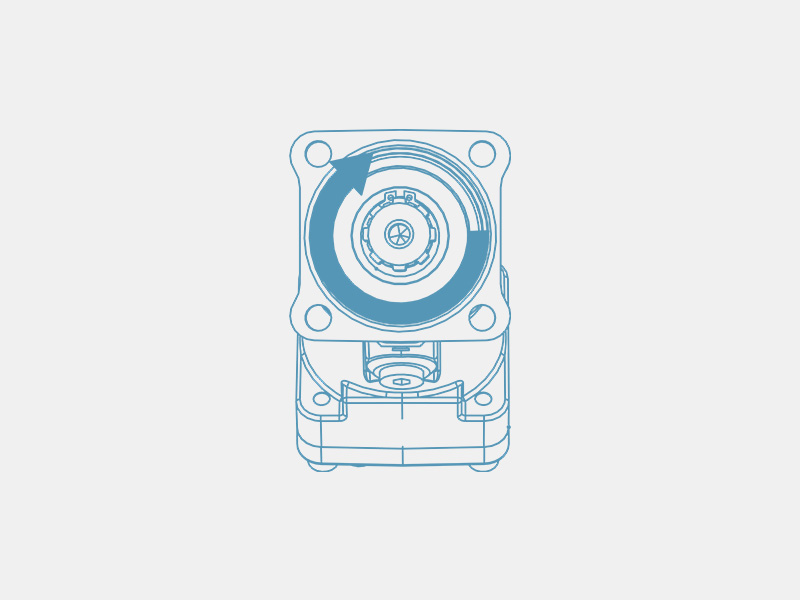

Direction of Rotation | CW / CCW |
Inlet Fittings Type | All Dimensions of 45degree + 90degree |
Displacement Range | 53/53cc, 70/70cc, 76/76cc, 56/26cc, 40+40cc |
Maximum Speed | 100 RPM to 4800 RPM |
Minimum and Maximum Pressure | Min. 50 bar, Mid. 380 bar, Peak 420 bar |
Body Design Information | Single Flow Cast Iron Body |
Delivery Time | In Stocks; 1-2 Days, Out Stocks; 14-21 days |
Colour of Body and Cover | BLUE Color Default, BLACK Color Optional |
Brand Information | Hidrapac - Buyer Label Possible |
Weight Information | 5,5kgs Min Weight, 21 Kgs Max Weight |

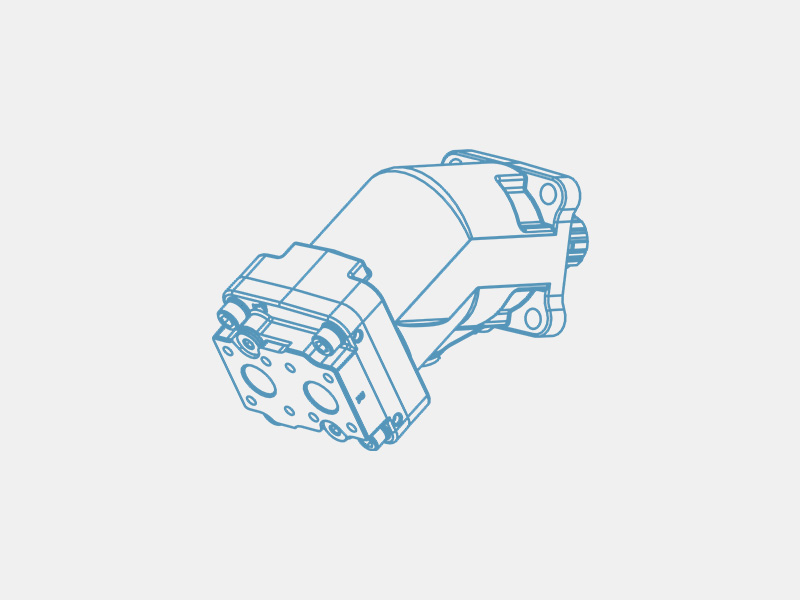

Compact Design, Economical Conception, High Rotating Speeds, High Output Pressure, Reduced Noise Level, Smaller Installation Dimensions, One Piece Pistons with Piston Rings, Special Suction Fittings & Accesories, Simple Change of Direction of Rotation..
Bent Axis Pumps starting at ; 5cc, 12cc, 18cc, 25cc, 32cc, 40cc, 50cc, 56cc, 63cc, 80cc, 108 cc and 130cc.
Bent Axis Pumps have Special and Classic Versions. More details available at Official Catalog..
Click for Body DrawingsNew frame sizes to meet market requirements.
Optional by-pass valve.
For use in mobile & industrial and stationary applications areas.
The Pump drive shaft bearings are designed to give the service life expected in these areas of operation.
Interchangeable with other bent axis pumps.
8x32x36 Splined Shaft, DIN ISO 14NF - Keyed Shaft Options
Click for Flange Drawings40 degree bent axis design giving high power, small overall dimensions, optimum efficiency and economic design.
Flange and shaft designed for direct mounting on truck gearbox PTO's. The fixed displacement bent axis pumps generates a hydraulic fluid flow.
It is designed for use in trucks, commercial vehicles and all stationary hydraulic applications. The Motor is a fixed motor with rotary group in bent-axis design open circuits.
Click for Shaft DrawingsFlow is proportional to drive speed and displacement.
For axial piston units with bent-axis design, the Pistons are arranged diagonally with respect to the drive shaft. The pump covers the whole displacement range 5 to 130 cm3/rev.
The pump has been developed with modern styling and design to satisfy market demand as to designed new generation plate and pistons with give high flow performance, high pressures with high efficiency and very small dimensions.
Click for Rear Cover DrawingsThe pump is available both to DIN and SAE world standards and can be mounted either directly at the gear box or via a drive shaft.
If necessary it can also be augmented with a by-pass valve.Other brand bent axis pump compatible and interchangeable with our bent axis pumps.
Refer to the data sheet and order confirmation for the technical data,operating conditions and operating limits of the bent axis piston pumps.
